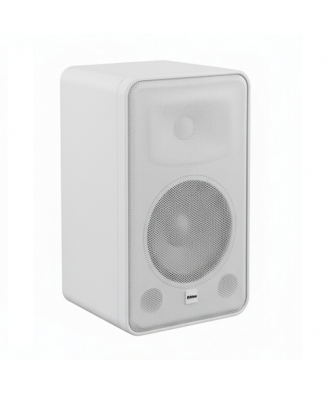

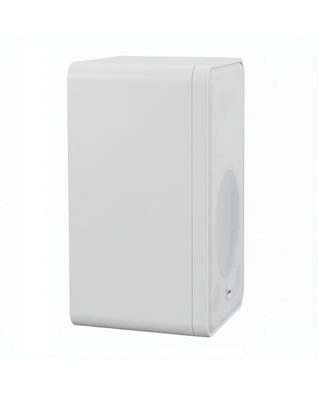

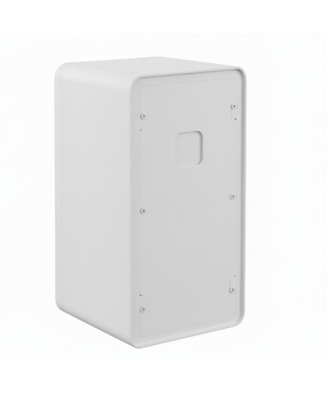

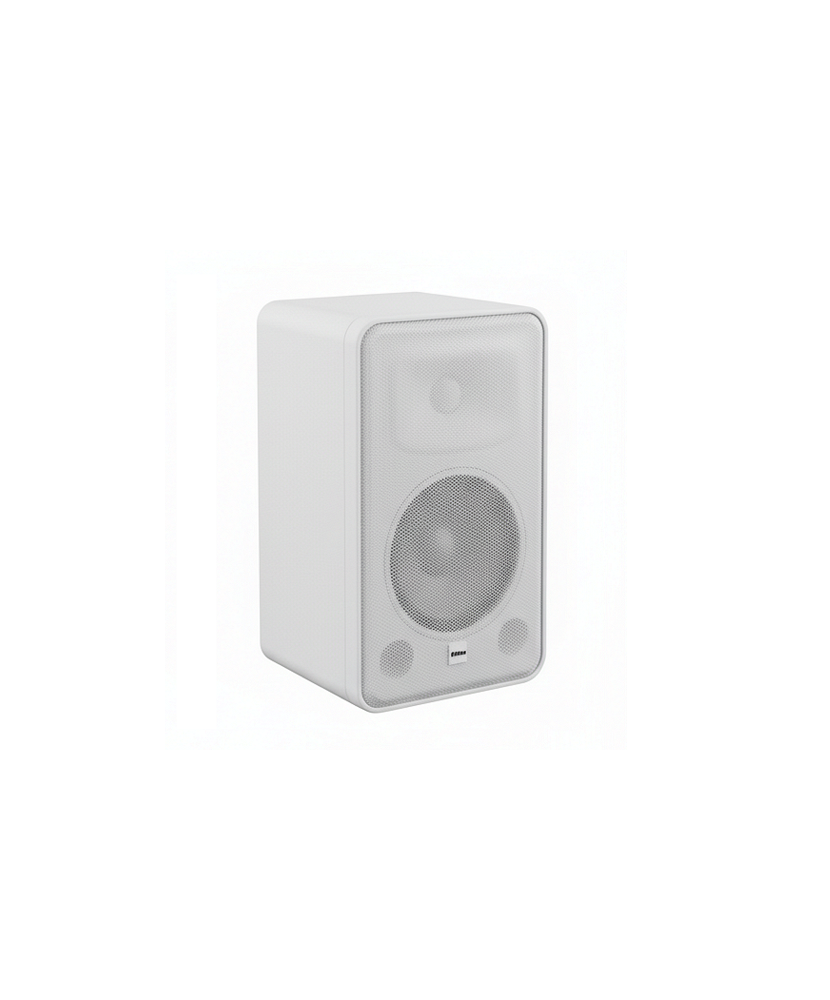

Master Bluetooth Surface Speaker
The ITTH-SB15MASTER is an active wall speaker with a built-in amplifier and Bluetooth, designed to function as the main unit (Master) of an audio system. Its design allows for standalone use or system expansion by connecting one or more passive auxiliary speakers.
Function in System: Active Master Speaker with Bluetooth
Output Power (RMS): 15W + 15W @ 8Ω (per channel)
Integrated Amplifier: Class D, 2 channels
Output Impedance (AUX): 4-8 Ω (minimum total allowed: 4Ω)
Speaker Type: 8" Dual Cone, Paper Driver
Frequency Response: 120 Hz – 15 kHz (±3 dB)
Bluetooth: Version 5.3, range up to 10m (unobstructed)
Power Supply: 12V DC (Transformer included)
Power Consumption: 24W max.
Controls: Power Button, Vol+, Vol-, BT
AUX Connection: Cable terminals (+/-) - "AUX OUT"
Ingress Protection Rating (IP): IP68 (Speaker Housing)
Installation: Wall Mount (with clips)
Material: ABS
Dimensions (H x W x D): 225 x 175 x 145 mm
ITTH-SB15MASTER
Data sheet
- COLOR
- WHITE
- DIMENSIONS(CM)
- 22,5 x 17,5 x 14,5
- IP
- IP68
- IMPEDANCE
- 8 Ω
- FRECUENCY RESPONSE
- 120Hz−15KHz (±3dB)
