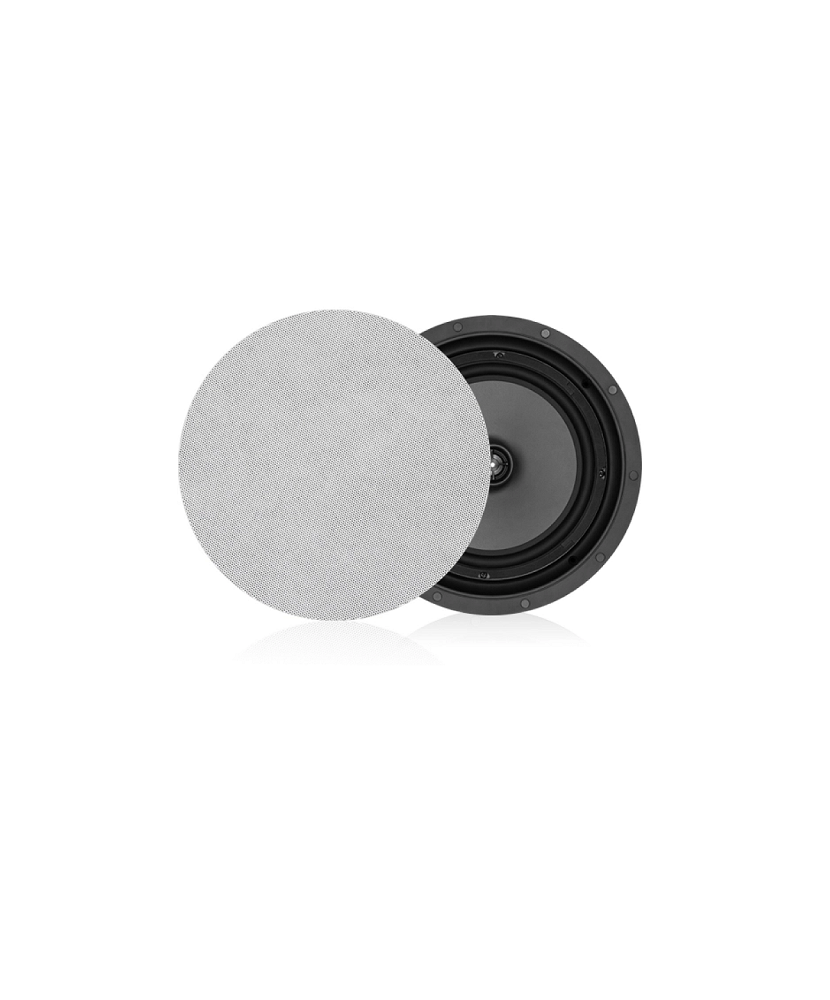

Passive Ceiling Speaker Full Range 5"
  • New

Passive Ceiling Speaker Full Range 5"

The ITTHON INNOVATION Passive Ceiling Speaker ITTH-Z318H is a 25W, 8-ohm built-in audio system. Its design prioritizes the easy replacement of obsolete speakers in already wired installations, maintaining the same existing audio cables. It includes a DC12V power adapter necessary to power its internal protection/control circuit. It does not include a line transformer for audio.

Type: Ceiling-mounted auxiliary speaker

Power supply: DC 12V (adapter included)

Rated power (RMS): 25W

Impedance: 8 Ohms

Frequency response: 20Hz – 20kHz (±3dB)

Sensitivity (1W/1m): 87 dB

Speaker unit: 5" cone driver

Product dimensions: Φ205 x 80 mm

Recommended cutout diameter: 170 mm

Audio connection: Screw terminals for direct cable connection

Enclosure material: ABS with metal clamps

ITTH-Z318H

Data sheet

DIAMETER(CM)
20,5
IMPEDANCE
8 Ω
FRECUENCY RESPONSE
20 Hz – 20 kHz (±3dB)
